You can enjoy a hotel-like stay everywhere you roam in a Navigator Class A diesel motorhome by Holiday Rambler. The Cummins ISB Turbocharged 6.7L engine features 340 HP with 700 ft. lbs. of torque to power your adventures, and the four-color premium full-body paint options are sure to be show-stopping!



Each model includes an exterior entertainment center with an LED TV, side swing aluminum bus-style baggage doors with locking handles, automatic hydraulic leveling jacks, plus many more conveniences. You will feel right at home with an Encore Series king bed, glass tile backsplash in the galley, and a living area fireplace. These motorhomes also feature impressive dual 15,000 BTU roof A/Cs and dual 30,000 BTU furnaces to keep you comfortable year around.



Navigate the open road like a pro in a Holiday Rambler Navigator Class A diesel motorhome!



  • Navigator 38F

    Navigator 38F Floorplan Image

    Take a Virtual Tour

    Holiday Rambler Navigator Class A diesel motorhome 38F highlights: Four Slides ... more about Navigator 38F

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 4
    Length 40 ft 1 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Canvas, Embassy, Metropolis
    Exterior Color Anchorage, Annapolis, Arlington, Blizzard
    Hitch Weight 10000 lbs
    Gross Weight 33000 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R 22.5H
    Furnace BTU 60000 btu
    Generator 8000W Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins ISB Turbocharged 6.7L
    Chassis Freightliner XCM Series
    Horsepower 340 hp
    Fuel Capacity 100 gals
    Wheelbase 263 in
    Available Beds King
    Torque 700 ft-lb
    Refrigerator Type Stainless Steel Residential w/Ice and Water in Door
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 38" x 30"
    Number of Awnings 1
    Axle Weight Front 12400 lbs
    Axle Weight Rear 21000 lbs
    Water Heater Type Girard Tankless
    AC BTU 30000 btu
    Basement Storage 142 cu. ft.
    TV Info LR LED TV, BR LED TV, Cab LED TV, Exterior LED TV
    Awning Info Electric w/LED Lights & Motion Sensor Retract
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Navigator 38K

    Navigator 38K Floorplan Image

    Take a Virtual Tour

    Holiday Rambler Navigator Class A diesel motorhome 38K highlights: Bath and a ... more about Navigator 38K

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 3
    Length 39 ft 5 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Canvas, Embassy, Metropolis
    Exterior Color Anchorage, Annapolis, Arlington, Blizzard
    Hitch Weight 10000 lbs
    Gross Weight 33000 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R 22.5H
    Furnace BTU 60000 btu
    Generator 8000W Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins ISB Turbocharged 6.7L
    Chassis Freightliner XCM Series
    Horsepower 340 hp
    Fuel Capacity 100 gals
    Wheelbase 252 in
    Available Beds King
    Torque 700 ft-lb
    Refrigerator Type Stainless Steel Residential w/Ice and Water in Door
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 50" x 28"
    Number of Awnings 1
    Axle Weight Front 12400 lbs
    Axle Weight Rear 21000 lbs
    Water Heater Type Girard Tankless
    AC BTU 30000 btu
    Basement Storage 127 cu. ft.
    TV Info LR LED TV, BR LED TV, Cab LED TV, Exterior LED TV
    Awning Info Electric w/LED Lights & Motion Sensor Retract
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Navigator 38N

    Navigator 38N Floorplan Image

    Take a Virtual Tour

    Holiday Rambler Navigator Class A diesel motorhome 38N highlights: Full-Wall ... more about Navigator 38N

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 39 ft 5 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Canvas, Embassy, Metropolis
    Exterior Color Anchorage, Annapolis, Arlington, Blizzard
    Hitch Weight 10000 lbs
    Gross Weight 33000 lbs
    Fresh Water Capacity 105 gals
    Grey Water Capacity 75 gals
    Black Water Capacity 50 gals
    Tire Size 275/80R 22.5H
    Furnace BTU 60000 btu
    Generator 8000W Onan Quiet Diesel
    Fuel Type Diesel
    Engine Cummins ISB Turbocharged 6.7L
    Chassis Freightliner XCM Series
    Horsepower 340 hp
    Fuel Capacity 100 gals
    Wheelbase 252 in
    Number Of Bunks 2
    Available Beds King
    Torque 700 ft-lb
    Refrigerator Type Stainless Steel Residential w/Ice and Water in Door
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 50" x 28"
    Number of Awnings 1
    Axle Weight Front 12400 lbs
    Axle Weight Rear 21000 lbs
    Water Heater Type Girard Tankless
    AC BTU 30000 btu
    Basement Storage 127 cu. ft.
    TV Info LR LED TV, BR LED TV, Cab LED TV, Exterior LED TV
    Awning Info Electric w/LED Lights & Motion Sensor Retract
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

Navigator Features:

Standard Features (2023)



Construction

  • Full pass through basement storage w/composite floor and wall construction
  • Electric slide out systems
  • Painted steel frame chassis construction
  • Dryseal edge coating for all ceilings, walls, and floors
  • Front generator access
  • Steel constructed entry step box
  • Powerlock System - interlocking floor, walls, and roof
  • High density polystyrene insulated sidewalls, roof and floor
  • Vacu-bond aluminum framed constructed sidewalls, roof, and floor
  • Premium gel exterior Vetrosina fiberglass skin (no wood substrate)
  • Full coverage heavy duty undercoating
  • Heated fresh water and holding tank compartments (w/Furnace Operational)
  • Quiet insulated, ducted A/C system

Exterior

  • Side swing aluminum bus-style baggage doors w/ locking handles
  • King Universal Stationary satellite
  • Patio lighting
  • Front and rear mud flaps
  • Powered entrance awning w/LED lighting
  • Full bay 90" slide tray
  • Oversized dark tinted frameless windows
  • Exterior park cable and satellite hookup
  • Roof vent rain covers
  • 3rd roof A/C (Optional)
  • 4-color premium full body paint
  • Electric patio awning w/LED lighting and motion sensor retract
  • Front, side and rear clearance and marker lighting
  • Slide out awning toppers above all slide outs
  • Porch light w/interior switch
  • 7-way round tow connection
  • TPO roof
  • Fiberglass rear cap assembly
  • Fiberglass front cap assembly
  • Basement storage LED lighting
  • Lighted acrylic grab handle at entry door
  • Automatic entrance steps
  • Front cap generator access
  • Exterior service station - includes: water pump switch, exterior shower, black tank flush, city water hookup, towel holder and drainage valves
  • Rear under hood utility light
  • Basement pass-through storage
  • Unidirectional HD on-air antenna
  • Rear ladder
  • Fiberglass wheel well skirts
  • Automatic hydraulic leveling jacks
  • Entry door w/ radiused upper, deadbolt and screen door
  • Satellite delete (Optional)

Cab Exterior

  • Front mount remote power/heated mirrors w/turn signals and side cameras
  • Lower front clear protective film
  • Tinted slider driver window
  • Daytime running lights
  • Top mount automotive style windshield wiper system
  • Automotive one piece bonded windshield

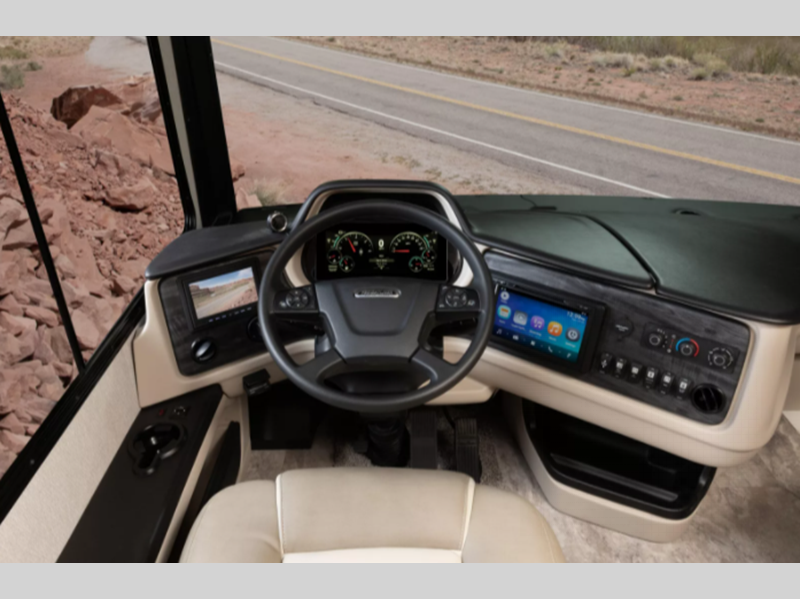

Cab Interior

  • Air suspension deflation system
  • 10.2" Stereo w/ touch screen w/AM/FM/CD/DVD/Bluetooth/Navigation/App Store/WiFi
  • Driver & passenger overhead storage cabinetry
  • Hide-A-Loft power drop-down overhead bunk w/ LED TV (Optional)
  • Electronic cruise control
  • LED Optiview instrument panel
  • Momentary battery booster switch - connecting chassis and house batteries
  • 12V and USB accessory ports
  • Front power roller blind
  • Passenger seat w/reclining back, swivel, 6-way power controls and power footrest (Optional)
  • Seat belts - 3 point driver and passenger
  • Passenger console
  • Radio switch main/auxiliary power at dash
  • Map lights
  • Passenger seat w/reclining back, swivel, 6-way power controls and manual footrest
  • Electric alert horn
  • Driver and passenger side manual roller shades and blinds
  • Automotive style wrap around dash
  • Sirius/XM satellite radio ready (requires subscription)
  • Switch for exterior service lights
  • Dash air conditioning and heat
  • Driver seat w/reclining back, swivel and 6-way power controls
  • Keyless entry w/remotes
  • Automatic leveling jacks touchpad controls
  • Driver console w/lower storage bin
  • 120V AC outlet at dash and passenger area
  • Windshield wipers w/ delay
  • Switch for power/heated mirrors
  • Color backup monitor

Interior

  • Electric fireplace (Living Area)
  • Energy efficient LED 3" flush mount ceiling lighting
  • Free-standing dinette w/Credenza (Standard 38F) (Optional 38K, 38N)
  • Full extension drawer guides w/latches
  • Coordinating window treatments
  • Chair - recliner swivel glide (38F)
  • Composite tile flooring
  • Power Motion Lounge (Optional 38K, 38N)
  • Select hardwood cabinetry
  • Manual day/night roller shades
  • U-shape dinette (38K)
  • Loveseat w/storage (38K)
  • Accent lighting
  • Stackable washer and dryer (38F, 38K)
  • Side-by-side washer and dryer (38N)
  • Sofa w/queen sleeper bed (38F)
  • Sofa w/twin sleeper bed (38N)
  • Hidden hinge cabinet doors
  • Interior soft touch vinyl celling
  • L-shaped dinette (Optional 38N)
  • 120V/USB receptacles
  • Facing dinette booth (Standard 38N) (Optional 38F)
  • Hardwood ceiling feature trim w/lighting

Interior Entry

  • Power entry step cover
  • Metal interior grab handle
  • Entry door manual roller shade and blind
  • Battery disconnect switch at entry console
  • Entry step w/ LED accent lighting

Kitchen

  • Adjustable shelving
  • Polished solid surface sink covers
  • Pantry storage
  • Polished solid surface galley countertop
  • Power vent
  • Stainless steel sink
  • Stainless steel residential refrigerator
  • Shadow box glass tile backsplash w/window and shade
  • Waste basket
  • Stainless steel OTR convection microwave
  • Full extension drawer guides w/ latches
  • Residential faucet w/ pullout sprayer
  • 2-burner induction cooktop
  • Dishwasher (Optional)

Bathroom

  • Glass shower door
  • Residential faucet
  • Power vent(s)
  • Designer shower head assembly
  • Polished solid surface countertop(s)
  • Residential sink(s)
  • Fiberglass shower
  • Shower skylight
  • Towel rings(s) and toilet paper holder
  • Medicine cabinet w/mirror
  • Tile backsplash
  • Porcelain toilet w/macerator

Entertainment

  • LED TV (bedroom)
  • Soundbar TV sound system (living area)
  • Exterior entertainment center w/LED TV and Bluetooth soundbar
  • Blu-Ray player w/remote
  • LED TV (living area)
  • LED TV (front overhead)

Electric & Utilities

  • Water filtration system (whole coach)
  • Energy management system (EMS)
  • Transfer switch w/surge and reverse polarity protection
  • Air conditioners: Dual 15,000 BTU roof mount, ducted w/chill grill and rear heat pump
  • Electric power cord reel
  • Generator: 8000W Onan Quiet diesel
  • Dual gravity water fill
  • Neutral loss protection
  • Auto gen start
  • Power converter: 60 Amp
  • Inverter: Single 2000W pure sine w/remote
  • CO and smoke detectors, fire extinguisher
  • High capacity water pump
  • 100W solar panel
  • Batteries: (4) 6V deep cycle house
  • Cable TV/Satellite hookup
  • Central vacuum system
  • Dual 30,000 BTU furnaces
  • Service Panel: 50 Amp, 120 volt
  • Black holding tank San-T-Flush system
  • Multiplex wiring system
  • Sensored tank monitoring through multiplex
  • Generator auto changeover
  • Tankless water heater (Girard)

Chassis

  • Tire pressure monitoring system
  • Power assisted steering
  • Tuned SACHS shocks
  • Valve stem extensions
  • Front and rear aluminum wheels
  • (2) 12V Heavy Duty Chassis Batteries
  • CSA Package - FCCC (Optional)
  • BrakeSync (FCCC) (Optional)

Bedroom or Bunk Area

  • Spacious wardrobe storage w/hardwood doors
  • 120V/USB receptacles at nightstands
  • 28" x 73" Bunk beds with 4" foam mattress (38N)
  • Remote generator start switch
  • Encore Series king bed
  • Designer bedspread and pillows w/ shams
  • Individual reading lights at bed overhead
  • Headboard

Please see us for a compete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.

Manu-Facts:

Holiday Rambler Logo

At Holiday Rambler, we believe spirited travelers should never settle. Which is why we make motorhomes that are built for the road—and far beyond. We design every model to be rugged, reliable and up for anything. Then we outfit the interior with extra storage and practical details. Inside and out, we thought of everything. All you need to bring is your sense of adventure. Because whether you’re on the road, off the beaten path, or parked alongside a scenic view—in a Holiday Rambler, this is living.



Our motorhomes are built to be driven 365 days a year, in almost any kind of road condition, wherever your wanderlust leads. When it comes to technology, we’re always trying new things and taking our ideas further than most—just like you.



Say goodbye to stick-and-frame construction. Our exclusive Powerlock System™ uses interlocking, extruded aluminum wall joints to integrate the floor, sidewall and roof assembly into one overall structure. It’s a strong, seamless fit that promises long-term performance and durability.



DriveTech’s ergonomically designed steering wheel and easy-to-reach, column-mounted controls turn piloting your RV into a driver-friendly automotive experience. And as the RV industry’s first LED instrument Cluster, OptiView™ has bright graphics, colors and menus, Bluetooth® connectivity and on-demand operation. Together, they both give you convenience and control, right at your fingertips.



Behind every grand adventure is a rugged, reliable chassis. To keep up with your wildest dreams, our motorhomes are built on the industry’s most trusted, time-tested chassis—including the Freightliner Titan Bridge®, the Ford® Power Platform and the Delta® Foundation. No matter where you wander, a Holiday Rambler chassis has the strength, storage and support to make sure you and your gear arrive safe and sound.



Holiday Rambler motorhomes are designed to go from "Point A" to "Point Z."  And everywhere in between.
