New 2023 Coachmen RV Catalina Expedition 192FQS

Travel Trailer

Stock #BV1607

Oro-Medonte, ON

Call for more details!!!

1 of 6

Specifications

Sleeps	4	Slides	1
Length	21 ft 8 in	Ext Width	7 ft 6 in
Ext Height	10 ft 4 in	Int Height	6 ft 6 in
Hitch Weight	540 lbs	GVWR	5040 lbs
Dry Weight	4008 lbs	Cargo Capacity	1032 lbs
Fresh Water Capacity	44 gals	Grey Water Capacity	30 gals
Black Water Capacity	30 gals	Furnace BTU	30000 btu
Available Beds	RV Queen	Refrigerator Type	12V
Refrigerator Size	10 cu ft	Cooktop Burners	2
Shower Size	32" x 32"	Number of Awnings	1
LP Tank Capacity	20 lbs	Water Heater Capacity	6 gal
Water Heater Type	Gas/Electric DSI	AC BTU	13500 btu
TV Info	LR 32" 12V DC TV	Awning Info	13' Electric with Multicolor LED Lights and Remote
Axle Count	1	Number of LP Tanks	2
Shower Type	Radius	Electrical Service	30 amp
VIN	5ZT2CAHC7PK004922

Description

Coachmen Catalina Expedition travel trailer 192FQS highlights:

Sofa with Table
Full Bathroom
RV Queen Bed
Outside Shower
Jack-It Bike Carrier
Flip-Down Cargo Rack

Get ready for adventure either at a local RV park or off-grid as you enjoy the outdoors. You will be able to return to your own accommodations in this trailer with a spacious interior thanks to the single slide that offers more elbow room and floor space to move about, and plenty of space to stretch your legs, and dine. This area is also great for an overnight guest or two small children to sleep on. Spend your days outside swimming at the lake or hiking trails to return to a rear corner bath with a 32" x 32" radius shower that will allow you to get cleaned up before bed. You will find an RV queen bed with a countertop at the foot of the bed which is a perfect spot to drop your phones for the night or stash your reading material, alarm clock and/or purse/wallet.

With any Catalina Expedition travel trailer by Coachmen, you will have a lightweight RV that was built with a cambered structural steel l-beam frame, a seamless Alpha roof membrane, fiberglass insulation throughout, and oversized off-road fender flares, all terrain tires, and a premium exterior graphics package. On the outside, an electric awning includes a multicolor LED strip with remote offering a covered outdoor living area that can be utilized during the day or night, plus a multizonal JBL premium exterior speaker to listen to tunes from the interior MP3/FM stereo with Bluetooth and USB charge port, a 1,000 watt inverter, and an Off Grid Solar system. The interior provides two 12V 14' ceiling vent fans, one in the living area and one in the bathroom, seamless Thermofoil countertops throughout, ceiling speakers, under bench dinette storage, and so much more! It's time to start your expedition!

Features

Standard Features (2023)

Exterior

Flip Down Cargo Rack w/200 lb. Cap.
Electric Awning w/Multicolor LED Strip & Remote
Black Tank Flush
Battery Disconnect Switch
Siphon 360 Holding Tank Roof Vent
Heavy Duty Standard Tongue Jack
Outside Utility Shower w/ Hands Free Holder
(2)20 lb. LP Tanks
Flush Mount Baggage Doors w/Radius Corners
Diamond Plate Rock Guard
Stabilizer Jacks
G20 Tinted Privacy Windows
Front Landscape Picture Window
Premium JBL Exterior Speakers(s)
Friction Hinge Door
Radius Cornered Fiberglass Entry Door
Exterior 110V G.F.C.I Protected Receptacle
Exterior RG-6 Coax Cabling and Satellite Prep
Exterior TV Hookup
Rain Gutters with Drip Spouts
SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only)
Rear View Camera Prep
Pets - "Leash Link" Quick Hookup D-Ring
Rear Mounted Roof Ladder
Jack-It Bike Carrier
1,000W Inverter
Peak Performance Solar Package: 30 Amp Solar Charge Controller, 200W Roof Mounted Solar Panel

Interior

One Control Smart RV Tech Monitor Panel (uses LCI OneControl - App)
RV-LINK 4G LTE Remote Connect, WiFi, Booster, and Extender
Premium Audio JBL Aura Cube Multi-Zone Function Media Center
Premium JBL Interior Speaker(s)
10 Cu. Ft. 12V Refrigerator
Seamless Thermofoil Countertops Throughout
Under-mount Farm Style Sink
High Rise Bullet Style Kitchen Faucet
2 Burner High Output Cooktop w/Flush Glass Top
Slim Line Range Hood
SST Microwave W/Glass Turn Table
Congoleum Woodplank Linoleum Flooring
4000 Lumin LED Interior Lighting
Jiffy Sofa w/Flip Down Cup Holder/Arm Rest (192FQS )
Hard Valance Window Treatments
Pedestal Thermofoil Dinette Table (N/A 192FQS)
Portable Dinette Table
Under Bench Dinette Storage (Per Floorplan)
12V 14" Living Room Power Vent Fan
12V 14" Bathroom Power Vent Fan
Marine Toilet with Foot Flush
ABS Tub/Shower Surround w/Shelves
Medicine Wall Cabinet with Mirror
Bedroom Surface Mounts USB Ports (Each Night Stand)
Kitchen USB's & Outlets
USB Surface Mounts Near Bunk Beds
Master Bedroom Overhead Cabinets
Designer Fitted Master Bed Sheet
Teddy Bear Bunk Mats
Full Lino in Slide-Outs and Bedrooms (Carpetless)

Construction & Equipment

Cambered Structural Steel I-Beam Frame
New Road Defense Chassis Powder Coating
Full Length Frame Outriggers
5/8" Tongue & Groove Plywood Floor Decking
2"x2" Floor Joists on Approximately 12" Centers
4" Floor To Frame Steel Lag Bolts
Darco Subfloor Protective Wrap/Enclosure
Seamless Alpha Roof Membrane with Lifetime Warranty
Cross-Braced Engineered Roof Trusses w/5" Crown
3/8" Fully Decked Walk-On Roof
Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
Hardwood Cabinet Doors
5/8" Plywood Under Bed & Dinette Base
78" Interior Height (6'6")
Schwintek Slide Out
R-7 Fiberglass Insulation Throughout
Shower Miser Water Saver
6 Gal. Gas/Electric DSI Water Heater
Water Heater By-Pass Winterization Kit
12V Demand Water Pump
Premium Exterior Graphics Package
Platinum .024" Aluminum Exterior w/.030 Skirt Metal
Smooth HD Aluminum Radius Front
Oversized Off-Road Fender Flaires
Spare Tire, Carrier, and Cover
Dexter Torflex Torsion Axle w/ Independent Suspension
All-Terrain Tires
3" Lift Kit
Built In Roof Backers - Kayak Rack Prep
Self Adjusting Brakes
Roto-Cast Holding Tanks
Bumper w/ Drain Hose Carrier and End Caps
20,000 BTU Direct Furnace w/Wall Thermostat
13,500 BTU Central A/C
30 Amp Elect. Service w/ 100v 45-Amp Power Covt.
Upgraded Aluminum Wheels
Magnetic Hands Free Baggage Door Latches

Safety

Smoke Alarm
LP/CO Gas Detector
Fire Extinguisher
Fire Escape Windows
Entrance Door Window
Dead-Bolt Lock on Entry Door

Options

7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversable Door Inserts
Steel Fold-Down Steps in place of SolidStep Entrance Steps
Electric Tongue Jack
Roof Mounted Kayak Rack
CSA Standards

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent Customer Service
We just purchased our second trailer from Hiemstras and can't thank Paul enough for his outstanding customer service and support. We are new to the camping experience and knowing that, Paul guided us with his knowledge of the units available to Hiemstras. He very capably and patiently answered our questions.

Helen
Excellent Customer Service
Approximately a year ago, we purchased our Holiday Rambler RV at Bella Vista RV Centre. It wasn’t a high-pressure sales approach as we experienced at other dealers; these folks did an amazing job of showing us the value proposition on a wide selection of A Class RVs and when done, left it to us to think

Harry
Excellent Customer Service
Best place to buy a trailer! Mine and my wife’s family will never go anywhere else for our trailers needs!

Dylan

We are here to help, call us at
705-487-2878 or Contact Us

We are here to help!

705-487-2878
Contact Us
Contact Sales

Bella Vista RV Centre, Inc. is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @705-487-2878 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

New 2023 Coachmen RV Catalina Expedition 192FQS

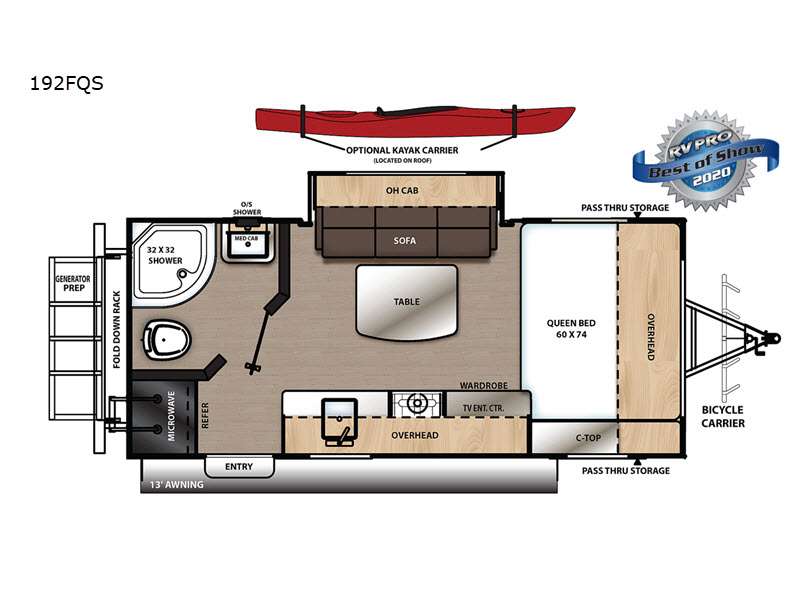

192FQS Floorplan
